The busbar is an important component used to transmit electrical energy in the power system, and its processing quality directly affects the stability and safety of the entire system. Improving the quality of busbar processing is crucial to ensuring the normal operation of power equipment. This article will discuss how to improve the quality of busbar processing from the aspects of material selection, processing equipment, process flow, operating specifications and quality control.
1.) Material selection
- High-quality raw materials
Bus bars are usually made of copper or aluminum. Copper conducts electricity better than aluminum, but it costs more. Choosing high-purity copper or aluminum materials can effectively improve the conductivity and corrosion resistance of the busbar, thus improving the overall quality.
- Appropriate material specifications
According to the purpose and design requirements of the busbar, selecting appropriate material specifications (such as thickness, width) is also an important prerequisite to ensure processing quality.
2.) Processing Equipment
- Precision machining equipment
The use of advanced CNC busbar machine can improve the processing accuracy and consistency of busbars. Equipment such as CNC busbar bending machine, CNC busbarpunching machine and laser cutting machines play an important role in busbar processing.
- Equipment maintenance
Regularly maintain and maintain processing equipment to ensure that the equipment is always in good working condition and reduce the impact of equipment failure on processing quality.
3.) Process flow
- Reasonable process design
Before busbar processing, the processing process should be reasonably planned according to the design drawings to ensure that each process can be smoothly connected.
- Optimize processing steps
According to different processing requirements, optimize each processing step, such as cutting first and then punching, or punching first and then bending, to avoid deformation or stress concentration during the processing.
- Precise parameter setting
According to the material characteristics and processing requirements, accurately set the parameters of the processing equipment, such as cutting speed, punching force and bending angle, to ensure processing accuracy and surface quality.
4.) Operating instructions
- Training and skill improvement
Provide regular training to operators to improve their operating skills and process knowledge to ensure that they can operate equipment correctly and execute process flows.
- Strict operating procedures
Develop and strictly implement operating procedures to avoid processing quality problems caused by operating errors. For example, during the bending process, the accuracy and consistency of the bending angle should be ensured.
- Safe operation
Busbar processing involves dangerous operations such as high temperature and high pressure. Operators should wear necessary safety protective equipment and abide by safe operating regulations to reduce the impact of safety accidents on processing quality.
5.) QC
- Full-process quality monitoring
Carry out full-process quality monitoring in all aspects of busbar processing to promptly discover and correct problems during the processing. For example, processing accuracy and surface quality are monitored in real time through online inspection equipment.
- Regular quality inspection
Regular quality inspection is carried out on the processed busbars, including appearance inspection, dimensional measurement and conductive performance testing, etc. to ensure that the factory products meet the quality standards.
- Complete quality management system
Establish a complete quality management system, formulate clear quality standards and inspection specifications, trace and improve quality problems, and continuously improve processing quality.
Conclusion
Improving the quality of busbar processing is a systematic project, involving many aspects such as material selection, busbar processing machine selection, process flow, operating specifications, quality control and technological innovation. Only by striving for excellence in every aspect can the processing quality of the busbar be ensured, thereby ensuring the stable operation of the power system. In the future, with the continuous advancement of science and technology and the continuous optimization of production processes, the quality of busbar processing will be further improved, providing a more solid guarantee for the reliable operation of the power system.
—
This post brought to you by Atif Sharif

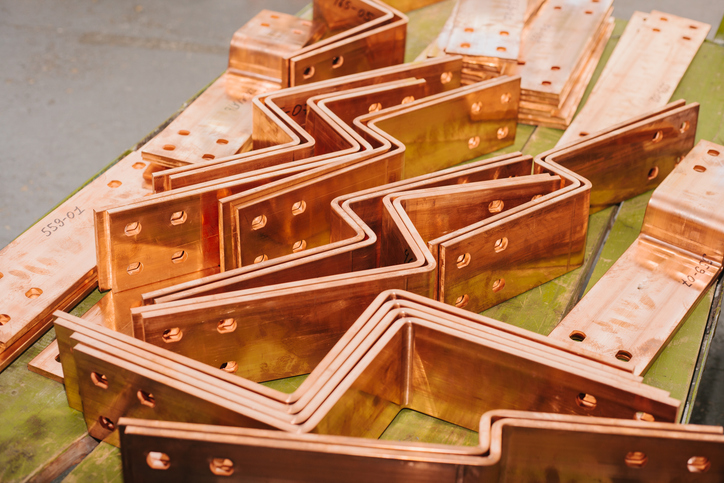

Photo: iStock
