How to Make Guitar Tabs: From MP3 to Playable Tab

—

Guitar tablature is the fastest way to get a song from your ears onto the fretboard. Unlike standard notation, tab shows you exactly where to put your fingers instead of asking you to translate pitches on a staff. That makes it the format most guitarists reach for first, whether writing an original riff, transcribing a cover, or remembering a chord progression before it slips away.

This guide covers how tab notation works, then walks through three ways to make guitar tabs: transcribing from an audio file, writing tab by hand in a free editor, and converting between standard notation and tab.

Tab Notation Basics

A tab staff has six horizontal lines, one for each string. On a standard reading, the top line is the high E string and the bottom line is the low E string, matching how the guitar looks if you tilt it up and look down at the neck.

Numbers placed on each line tell you which fret to press. A 0 means play the string open, no fretting hand needed. A 3 on the bottom line means fret the third fret on the low E string. Numbers stacked vertically are played together as a chord.

Common symbols you will run into:

h for hammer-on, where you pick one note then sound the next by tapping down with a left-hand finger.
p for pull-off, the reverse motion, plucking the string with a fretting finger as you lift off.
b for bend, pushing or pulling the string to raise the pitch.
/and \ for slides up and down between two frets.
~for vibrato.
x for a muted or percussive hit, no clear pitch.
PM with a dashed line for palm muting.

Tab tells you where to play a note but not always how long to hold it. Basic tab carries no rhythm information, which is fine for riffs you already know by ear but limiting for anything rhythmically complex. Guitar Pro files and tab rendered from MusicXML solve this by attaching rhythm and standard notation alongside the fret numbers.

Workflow A: Auto-Transcribe Tab from an Audio File

If you already have a recording, whether a rough phone video of yourself playing, a practice take, or a track you want to learn, the fastest starting point is automatic transcription. Tools built for this listen to the audio, detect pitches and note onsets, then map each note to a plausible string and fret combination and lay it out as tab.

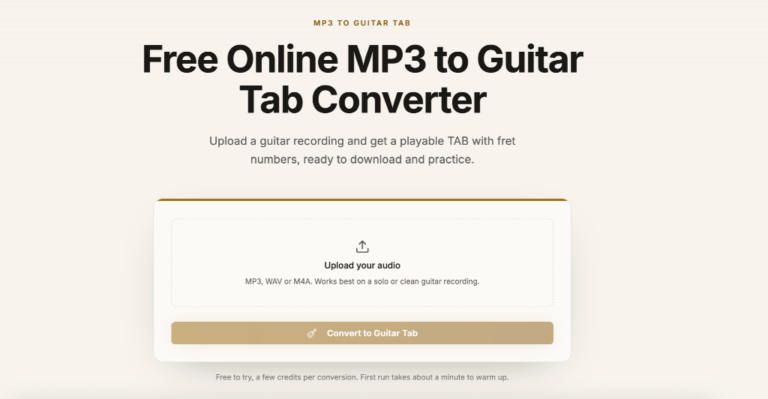

NotaGen’s MP3 to Guitar Tab does this: upload an MP3 or WAV and it converts the guitar line into tab you can view, edit, and export. It is worth being honest about what it is good at and where it needs help.

What it handles well: single-line melodies, riffs, solos, and clean guitar parts that sit clearly in the mix. Isolated guitar recordings transcribe more accurately than a guitar buried under drums, bass, and vocals.

Where it needs cleanup: dense chord voicings, heavy distortion, or a full band mix can confuse pitch detection, so expect to fix a few wrong notes by ear. Also worth knowing: for any given melody there are usually multiple fretboard positions that produce the same pitch. An algorithm picks a fingering that is technically playable, not necessarily the one the original guitarist used or the one most comfortable for your hand. If a passage feels awkward, try shifting it to a different position with the same notes.

A practical workflow:

Record or source a clean audio file, ideally isolated guitar if possible.
Upload it to the transcription tool and let it generate the tab.
Play through the result at a slow tempo and flag anything that sounds wrong.
Adjust string and fret choices where the fingering feels unnatural.
Export the cleaned-up tab.

Treat the auto-generated tab as a strong first draft, not a finished transcription. It saves you the tedious first pass of finding notes by ear, but a final read-through with your own ears and hands is still part of the process.

Workflow B: Write Tabs by Hand in a Free Editor

Sometimes you are not transcribing anything, you are composing. Writing tab from scratch gives full control over every note, fret, and technique marking, and it is the right approach for original riffs, exercises, or arrangements built from a chord chart.

A browser-based tab editor like NotaGen’s Guitar Tab Maker lets you click notes directly onto the string and fret grid, add hammer-ons, pull-offs, bends, and slides, and hear the result played back before you commit. Since it runs in the browser, there is nothing to install.

A few tips for building tab by hand:

Favor lower fret numbers when you have a choice. They are easier to read at a glance and usually easier to play in open positions.
Keep a riff in one position when possible.J umping around the neck for notes that are also available nearby adds unnecessary difficulty and makes the tab harder to sight-read.
Use open strings deliberately. They ring differently than fretted notes and can add resonance, but they also limit which key changes and voicings work naturally.
Mark techniques as you go. A tab with correct fret numbers but no hammer-on or slide markings loses a lot of the original feel. Add articulation while you remember how the line is supposed to sound.
Play it back before you save it. Audio playback catches wrong frets and awkward voicings faster than staring at numbers on a page.

Workflow C: Convert Between Standard Notation and Tab

Guitarists often need both formats. A teacher might want standard notation for a student learning to read music, while that same student wants tab for quick reference at home. Or you might have a MusicXML file and need a tab version, or the reverse.

NotaGen’s Guitar Tab to Sheet Music tool converts in both directions, turning tab into standard staff notation and standard notation into playable tab. This is useful when you are preparing lesson materials, sharing a part with a non-guitarist, or just want to see the same music represented both ways to double check your work.

If you are working with Guitar Pro files specifically, whether you received a .gp file from a bandmate or found one online, NotaGen’s Guitar Pro File Viewer opens and displays them in the browser without needing the desktop Guitar Pro application installed.

A quick comparison of the three workflows:

Workflow	Best for	Time investment	Accuracy
Auto-transcribe from audio	Learning existing recordings quickly	Low, plus a cleanup pass	Good starting point, needs a manual check
Write by hand	Original riffs and full control	Higher, note by note	As accurate as your input
Convert notation to tab	Sharing across notation formats	Low	Depends on source file quality

Choosing String and Fret Positions

One thing that trips up new tab writers is that the guitar has multiple ways to play the same pitch. A middle C, for instance, can be played on several different strings depending on where you are on the neck. A few guidelines help when deciding how to notate a passage:

Pick a position that keeps the whole phrase reachable without big jumps.
Consider what comes right before and after the passage. Staying close to your previous hand position usually beats a technically simpler fingering that requires a big shift.
If a note rings out (like an open string) while you play the next note, make sure your chosen fingering does not require muting a string you actually want to keep sustaining.
For chords, prioritize voicings that are physically comfortable over ones that are theoretically “correct.”

There is rarely one right answer here. Two guitarists can tab the same riff with different fret choices and both be entirely playable.

FAQ

Can automatic tab transcription read chords and full band mixes accurately? It works best on isolated or clearly mixed guitar parts. Dense chords, heavy distortion, and busy full-band recordings are harder to parse cleanly, so plan on reviewing and correcting the output rather than treating it as final.

Do I need to know standard notation to write tab? No. Tab shows string and fret positions directly, which is why many guitarists learn to read and write it before reading standard notation at all. Rhythm is the one area where pairing tab with standard notation helps, since basic tab alone does not show note duration.

What file formats should I export my tab in? MusicXML and Guitar Pro style formats preserve the most detail, including rhythm and articulation, and are the most widely compatible with other notation software. A plain text or PDF export works fine for quick personal reference.

—
