The transition from a digital design to a physical object is a critical milestone in the fast-paced world of product development. Choosing the right manufacturing process is about finding the best method in absolute terms; instead, it is about identifying which process aligns with your current stage of development, your budget, and your production goals. Two of the most common contenders for high-quality plastic parts are injection molding and urethane casting. While the finished parts from both methods might look similar to the untrained eye, the engineering and economics behind them are different. Understanding these nuances is essential for any project manager or engineer looking to balance speed, cost, and quality.
How Do They Work？

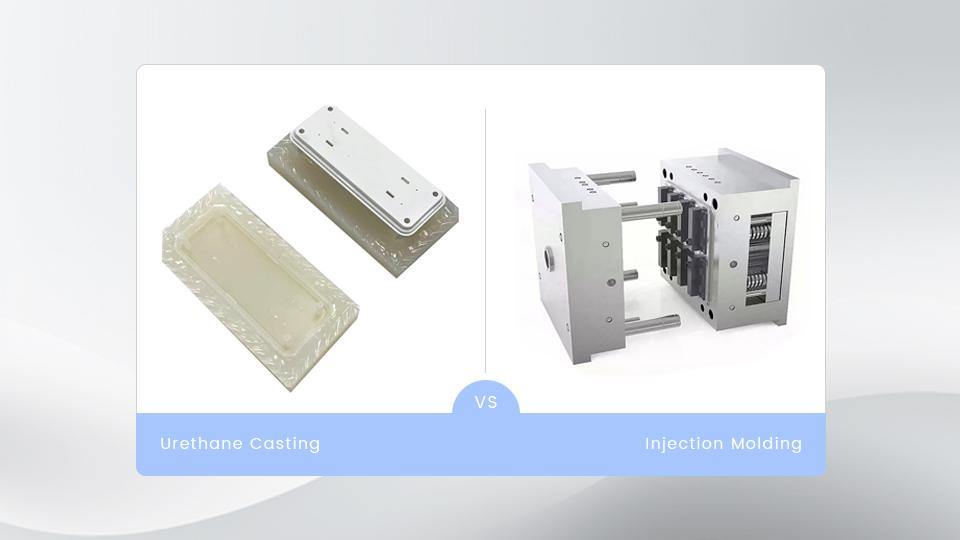

To understand the trade-offs, we must look at the mechanics of each process. The fundamental difference lies in the mold material and the state of the material being formed. Injection molding is the high-pressure, high-temperature industrial powerhouse of the manufacturing world. It begins with the creation of a tool, a precision-engineered mold typically machined from hard metals like steel or aluminum. Once this tool is mounted into an injection molding machine, raw plastic granules, known as thermoplastics, are fed into a heated barrel, melted, and then “shot” into the metal mold cavity at extreme pressure. The plastic cools rapidly, solidifies into the shape of the cavity, and is then ejected. This cycle is incredibly fast, often taking only seconds, which is why it is the global standard for mass production.
Urethane casting is a more gentle process optimized for low-volume production and rapid prototyping. It does not begin with a metal tool but rather with a master model, which is produced via 3D printing or CNC machining. This master model is suspended in a box and encased in liquid silicone. Once the silicone cures into a solid block, it is carefully cut open, and the master model is removed, leaving behind a detailed negative cavity. To produce parts, a two-part liquid polyurethane resin is mixed and poured into the silicone mold. This entire assembly is placed in a vacuum chamber to extract any trapped air bubbles, ensuring the resin reaches every tiny crevice of the design. The part then cures through a chemical reaction rather than cooling, a process that takes longer than the seconds-long cycle of injection molding.
Tooling vs. Unit Cost
The most significant factor in choosing between these two methods is the production volume and the associated cost structure. Injection molding is defined by high front-end costs. A professional steel mold is an expensive piece of equipment, often costing anywhere from five thousand to fifty thousand dollars or more, depending on the complexity of the part. However, once this initial investment is made, the cost per individual part is often just a few cents. Because steel molds are durable, they can produce hundreds of thousands of identical parts over their lifespan. This makes injection molding the undisputed king of mass production; the more parts you make, the more the high tooling cost is amortized.
Urethane casting upends this economic model. The setup cost is low because silicone molds are inexpensive and fast to produce, costing only a few hundred dollars. This makes it a more attractive option for projects with limited budgets or those that only need a handful of units. However, the disadvantage is in the back-end costs. The process is labor-intensive, and the liquid resins are more expensive than bulk thermoplastic pellets. Furthermore, silicone is a soft tooling material. After about 20 to 25 shots, the mold begins to lose its detail and tears or degrade. This limits the practical output of urethane casting to small batches between 1 and 100 units. If you tried to make 10,000 parts using urethane casting, the labor and material costs would far exceed the price of injection molding.
Material Integrity and Functional Testing
Beyond costs, you must consider the physical requirements of your part. This is where the difference between simulated and production materials becomes critical. Injection molding uses actual production-grade thermoplastics, such as ABS, Polypropylene, Polycarbonate, or Nylon. These materials have good mechanical properties, including specific melting points, tensile strengths, and impact resistances. If your part needs to withstand the rigors of the real world, such as extreme heat, chemical exposure, or heavy physical stress, the predictable performance of an injection-molded plastic component is essential. Furthermore, because the plastic is injected at high pressure, the molecular structure of the part is dense and consistent, leading to high structural integrity.
Urethane casting resins are formulated to simulate the properties of production plastics. You can choose resins that mimic the transparency of acrylic, the flexibility of rubber, or the impact resistance of ABS. For aesthetic models, marketing samples, or light functional testing, these simulations are excellent. However, they are thermosets rather than thermoplastics. Over time, cast resins may become more brittle or change color when exposed to UV light, and they may not match the long-term durability or heat deflection of their injection-molded counterparts. If your project requires official certification, such as UL or FDA compliance, for the final material, you will almost certainly need to move to injection molding.
Speed, Iteration, and Design Freedom
Speed is another area where the two processes diverge, depending on how you define it. If you need 10,000 parts today, injection molding is fast because the cycle time is short. However, if you need the first part today, injection molding is slow because it can take weeks or even months to machine the metal tool. Urethane casting is the champion of short-term speed. A silicone mold can be created, and the first parts poured in a matter of days. This makes it the ideal choice for bridge production, getting products into the hands of early adopters or testers while the permanent metal tool is still being manufactured.
Design freedom is another subtle but important consideration. Injection molding is a rigid process that requires strict adherence to Design for Manufacturing (DFM) rules. You must include draft angles so the part can slide out of the metal mold, maintain uniform wall thickness to prevent warping, and avoid undercuts that would trap the part inside the mold. Urethane casting is much more forgiving. Because the silicone mold is flexible and elastic, it can be stretched and pulled away from complex geometries, deep ribs, and undercuts that would be impossible or prohibitively expensive to achieve in a steel mold. This allows designers to be more creative during the prototyping phase without worrying about the immediate mechanical constraints of mass production.
Making the Strategic Choice
The decision between injection molding and urethane casting is a strategic one that depends on where you are in your product’s lifecycle. If you are in the early-to-mid stages of development, where the design might still change and you only need a small quantity for validation or aesthetic display, urethane casting is the superior choice. It provides high-fidelity, professional-looking parts without the significant financial risk associated with permanent tooling.
However, once the design is frozen and your market demand is proven, injection molding is the only viable path to commercial success. It offers the lowest per-unit cost, the highest material integrity, and the scalability required to reach thousands of customers. Many successful companies utilize a tiered approach: starting with 3D printing for initial fit-checks, moving to urethane casting service for high-quality marketing samples and functional testing, and finally investing in injection molding for the official product launch. By matching your manufacturing method to your production volume and development goals, you ensure that your project remains both cost-effective and technically sound.
—
