Imagine your home’s electrical system as the body’s circulatory network—power flows through it like blood, energizing every appliance and light. But when a fault occurs, that same current can turn hazardous, leading to shocks, fires, or system failures. According to the Electrical Safety Foundation International (ESFI), electrical faults are responsible for more than 51,000 home fires each year worldwide.
As electrical systems grow more complex, so does the need for smarter protection. That’s where the RCBO breaker comes in—a compact device designed to offer dual protection by preventing both overcurrent and residual (earth leakage) faults. It’s the evolution of circuit safety technology, ensuring homes and workplaces remain protected from potentially devastating incidents.
Why Understanding RCBO Breakers Matters
Common Electrical Safety Challenges
Despite advancements in electrical safety, many still face recurring issues such as:
- Limited awareness of protective devices– Homeowners often rely on outdated circuit breakers or fuses that only provide partial protection.
- Frequent circuit trips and electrical hazards– Overloaded circuits, hidden faults, or insulation breakdowns cause nuisance tripping and safety concerns.
- Confusion about device types– The difference between MCBs, RCCBs, and RCBOs is often unclear, leading to improper installations and avoidable risks.
Understanding how an RCBO breaker functions can help prevent these issues and provide the peace of mind that your system is truly protected.
What Is an RCBO Breaker?
An RCBO breaker (Residual Current Circuit Breaker with Overcurrent Protection) is a specialized electrical safety device that merges two protective functions into a single unit:
- Residual current protection: Detects current leakage to earth, preventing electric shocks.
- Overcurrent protection: Guards against overloads and short circuits that can cause overheating or fires.
In essence, an RCBO combines the roles of an RCCB (Residual Current Circuit Breaker) and an MCB (Miniature Circuit Breaker), offering comprehensive coverage in a smaller footprint.
How the Dual Protection Works
Residual Current Protection: Detecting Earth Leakage
Electrical systems are designed for current to flow in a closed loop through the live and neutral conductors. When a fault causes some current to “leak” to earth—perhaps through a damaged wire or human contact—the balance between live and neutral currents is disrupted.
An RCBO’s built-in current transformer detects this imbalance. If the leakage exceeds a safe threshold (typically 30 milliamperes for personal protection), the RCBO immediately trips, disconnecting power before harm can occur.
This fast, automatic response can prevent serious electric shocks or fires caused by unnoticed leakage currents.
Overcurrent Protection: Managing Overloads and Short Circuits
RCBOs are also equipped with mechanisms to handle excess current caused by overloads or short circuits:
- Thermal protection:A bimetallic strip inside the device bends when heated by prolonged overcurrent. Once it reaches a certain temperature, it trips the breaker to prevent overheating.
- Magnetic protection:A solenoid coil responds to sudden current spikes, such as during short circuits, by instantly triggering the trip mechanism.
Together, these systems ensure both people and equipment are safeguarded against two of the most common electrical hazards.
The Science Behind RCBO Operation
The Role of Electromagnetic Induction
At the heart of the RCBO’s functionality lies electromagnetic induction. Under normal operation, the magnetic fields produced by current in the live and neutral wires cancel each other out. When an imbalance occurs due to earth leakage, a net magnetic flux develops.
This flux induces a voltage in the secondary winding of the internal transformer. The resulting current energizes the trip coil, causing the RCBO to disconnect the circuit within milliseconds. It’s a seamless interaction between physics and engineering that ensures safety through precise detection.
Heat and Overload Response
When current flows through a conductor, some energy converts into heat due to resistance (as described by Joule’s Law: P = I²R). During overload conditions, this heat builds up quickly.
The RCBO’s bimetallic strip takes advantage of this property—its two metals expand at different rates, bending until the circuit opens. This delayed tripping allows for short-term current surges (like motor startups) while still protecting against sustained overloads that could otherwise cause fires or damage.
Coordination Between Functions
One of the most remarkable aspects of the RCBO is its dual monitoring capability. It simultaneously tracks both current magnitude (for overcurrent) and balance (for residual current).
When either threshold is crossed, the mechanism reacts accordingly—sometimes even both systems working in tandem during compound faults. This coordination ensures precision protection for modern, high-demand electrical systems.
Installation and Maintenance Insights

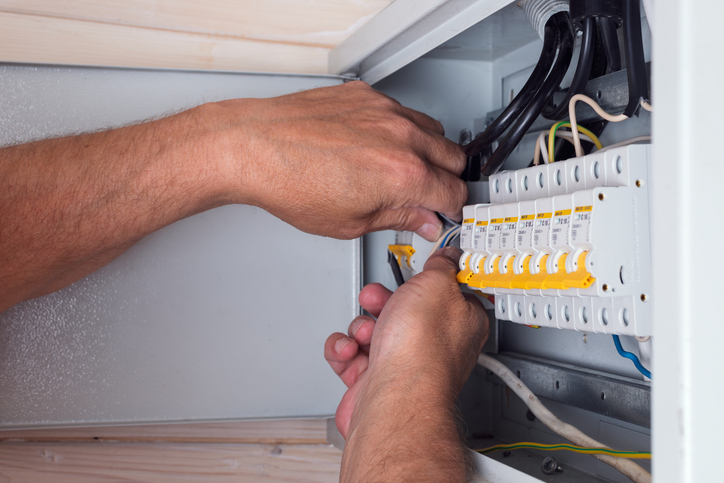

Proper Installation Guidelines
For optimal safety, RCBOs should always be installed by qualified electricians following regional electrical codes.
Key recommendations include:
- Connecting both live and neutral conductors correctly—RCBOs monitor both, unlike standard MCBs.
- Selecting the correct rated current (e.g., 6A–32A) based on the circuit load.
- Positioning the RCBO appropriately within the distribution board for clear labeling and accessibility.
| Application Type | Recommended RCBO Rating | Typical Use Case |
| 6A – 10A | Lighting circuits | Home and office lighting |
| 16A – 20A | Power sockets | General appliances |
| 25A – 32A | Heavy-duty loads | Air conditioners, heaters |
Correct installation ensures that every circuit has tailored protection suited to its load and risk profile.
Routine Testing and Maintenance
Like all safety devices, RCBOs require periodic testing to ensure reliability.
Simple maintenance checklist:
- Press the test button monthly. This simulates a fault and verifies the trip mechanism.
- Inspect for visible damage. Discoloration, loose connections, or burning smells are red flags.
- Schedule professional inspection every 6–12 months, especially for older installations or high-demand systems.
These small steps can make a significant difference in long-term electrical safety.
Advantages of RCBO Breakers
Choosing an RCBO over traditional breakers offers several clear benefits:
- Comprehensive Protection: One device covers both earth leakage and overcurrent faults.
- Space-Saving Design: Eliminates the need for separate RCCBs and MCBs.
- Precision Fault Detection: Reduces nuisance tripping with modern sensitivity controls.
- Enhanced Safety: Protects people from electric shock and prevents electrical fires.
- Ease of Compliance: Meets IEC and other global electrical safety standards.
Leading manufacturers like CHINT have further advanced RCBO technology, offering models with improved durability, faster trip response, and reliable performance across residential and commercial applications. CHINT’s innovations highlight how modern RCBO breakers continue to evolve—providing safer, smarter, and more efficient electrical protection for today’s connected world.
Limitations and Considerations
Despite their advantages, RCBOs do have some considerations to keep in mind:
- Higher Initial Cost: They are slightly more expensive than standard breakers, but the added safety often justifies the investment.
- Potential for Nuisance Tripping: Moisture or poor wiring can cause false trips if not properly addressed.
- Compatibility Factors: Not all panels or installations are RCBO-ready; selecting the right type is crucial.
These minor drawbacks can be mitigated with correct installation, quality products, and periodic maintenance.
Real-World Applications of RCBOs
RCBOs are versatile and suitable for a range of environments:
- Residential buildings: For protecting lighting, socket, and kitchen appliance circuits.
- Commercial settings: Offices, retail outlets, and data centers benefit from precise protection.
- Industrial and outdoor applications: Ideal for equipment exposed to damp or high-load conditions.
- Smart systems: Integration into modern electrical panels allows for intelligent monitoring and automated fault alerts.
As sustainability and safety standards evolve, RCBOs will likely become the default choice for all new electrical installations.
Conclusion
Electrical protection is not something to take lightly. A single unnoticed fault can lead to irreversible damage, but with the RCBO breaker, both overcurrent and earth leakage risks are managed in one intelligent device.
By understanding how this technology works, you empower yourself to make smarter, safer choices for your home, workplace, or facility. RCBOs are not just electrical components—they are scientific guardians, combining physics, engineering, and innovation to ensure that every current flowing through your walls is as safe as possible. In a world increasingly dependent on electricity, protecting it intelligently is more than a precaution—it’s a responsibility.
—
